How to Install FASTrack™ Porch Screening®



FASTtrack™ Installation Tips

Tools & Other Materials Needed

Material needed
Chop Saw
Pro Rollerknife™
Flat Spline
Screwdriver/Drill
Rubber Mallet
Fasteners
Fiberglass Screen

Installation Steps

Attach CLIPS to Porch Frame
Attach CLIPS to Porch Frame
#1Mark clip positions around the frame keeping clips aligned for proper channel installation. Attach clips a maximum of 4" from corners and 14" - 16" apart using #10 x 1 1/2" stainless steel screws.
Roll screen into base
Attach FASTtrack™ CHANNEL to CLIPS
#2Cut FASTtrack channels to length and snap over clips using a rubber mallet, installing the vertical channels first followed by the horizontal channels.

(NOTE: Install vertical post before installing the horizontals - Refer to Step 3 first)
snap cap onto base
Creating POSTS by "Mating" FASTtrack™ CHANNELS
#3One of the unique features of FASTtrack channels is that the 1"x2" channels snap together to form a 2"x2" post or rail.

Install vertical posts by attaching two clips stacked together in the desired location on both the top and bottom of the frame using #10 x 2" stainless steel screws and then snapping the two FASTtrack channels to the clip using a rubber mallet.

#4Install horizontal posts in a manner similar to step 3 using 3" screws to attach to the porch frame and #8 x 4 1/2" zinc plated screws with nylon nut to attach the rails to the vertical posts.
snap cap onto base
Roll SCREEN into FASTtrack™ CHANNEL
#5Using the flat spline, Pro Rollerknife™ Screening Tool & fiberglass screen; Simply roll screen into the grooves located on either the interior or exterior of the porch. Starting with the top, working your way to the sides and bottom of each section to be screened.

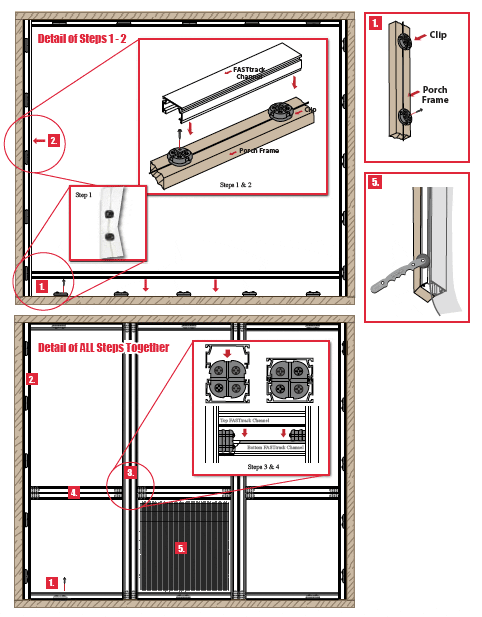

Diagram A & B
